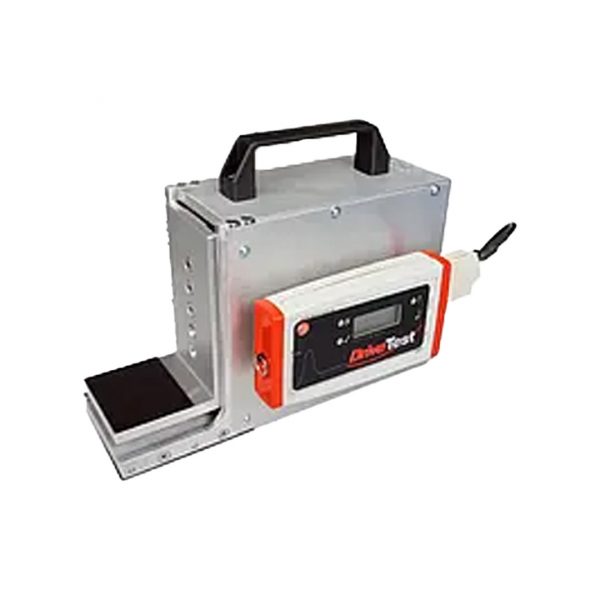

Closing Force Measuring Device FM202 sliding roofs,window lifters,doors,steps
Views: 2056
$0.00
Closing force measuring system for sliding roofs, window lifters, doors and sliding step measurement
Description
Closing force measuring system for sliding roofs, window lifters, doors and sliding step measurement
For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
– Applicable standards – 2000/4/EC or user-defined
– Precise measurement results – ensured by frictionless guide and platform load cell
– Robust design – housing made of high-strength aluminium and stainless steel for long service life in
heavy use
– Easy to use – operation with a single control button or remotely via Microsoft® DLL
– interface or National Instruments® LabView library
– Professional, comprehensive PC software – PinchPilot leaves nothing to be desired
– Wide measuring range – max. 600 N at 10 N/mm spring stiffness over the entire measuring range
– Excess force – applicable for excess force measurement
– Complete scope of delivery – all components in high-quality carrying case
Specification
| FM202 | |
| Application of force | on one side |
| Measuring range | 0 … 600 N |
| Accuracy | +/– 3 N (0–100 N) +/– 3 % (>100 N) |
| Spring rate | 10 N/mm |
| Gap width | 40 mm / 1.5″ minimum |
| Area | 80 x 80 mm / 3.1 x 3.1″ |
| Measuring principle | DMS bridge |
| Dimensions | 100 x 300 x 190 mm / 3.9 x 11.8 x 7.4″ |
| Weight | 4.2kg / 9.2 lb |
| Display device SEB2 | |
| – Data logger unit with LCD display and LED status indicators, control button, serial interface |
|
| – Optional PC-controlled measurement | |
| – 9 V battery supply | |
| – Real time clock | |
| – Memory for 100 measurements | |
| – Sensor and PC interface | |
| – Peak value display and effective power display | |
| – Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of important parameters | |
| – Evaluation according to different guidelines (standards) | |
| – Possibility of entering self-defined guidelines | |
| – Log printout | |
| – Data export (Excel, CSV, PDF)
– System requirements software PinchPilot (see tab Software/App) |
|
Delivery Scope
1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, membrane key
and serial interface
1 x 9 V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
