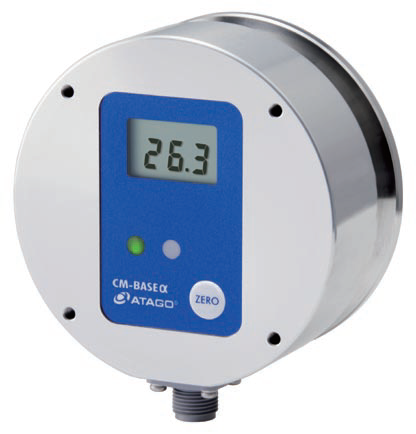

ATAGO CM-Basea
Views: 362
$0.00
A compact in-line model with simple specifications, capable of continuous measurement of samples such as water-soluble cutting
oil. Capable of monitoring concentration and mixing ratio. Output is possible with recorder (DC4-20mA) or RS-232C.
Description
A compact in-line model with simple specifications, capable of continuous measurement of samples such as water-soluble cutting
oil. Capable of monitoring concentration and mixing ratio. Output is possible with recorder (DC4-20mA) or RS-232C.
Full Details
compact size of Φ 90mm.
Ideal for monitoring concentration of
samples such as water soluble cutting oil.

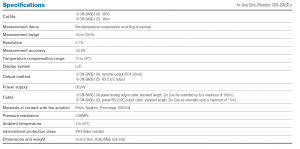

Specification
Key Features
Simple and easy to use
Once the unit is powered on (DC24V), the display light turns
on, and the unit begins measurement. A red light indicates
when abnormal measurements occur.
Equipped with bias adjustment feature
By pressing and holding the ZERO key, the ± 2.0
measurement value range can be adjusted.
2 types of models are available,
depending on the output method.
2 models: 1. The CM-BASEα (A) which outputs Brix values
via DC4-20mA signals, and 2. The CM-BASEα (D) which
outputs Brix values and temperature via RS-232C.
